How to set up a JBox on the Juggle UI

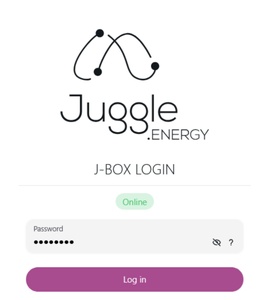

To configure a JBox correctly you will need to navigate to the JBox web UI. To do this enter the IP address provided by Juggle into your address bar. Once this has loaded up you will need to follow the log in instructions.

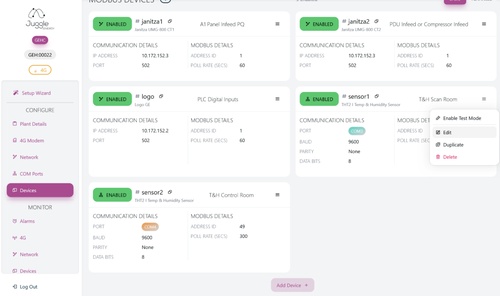

After logging in you will be brought to the main dashboard of the JBox web UI. From here navigate to the side tab ”configure”. Underneath configure there should be an option for “devices”, click on this and a page list of all the devices currently connected to your JBox should appear.

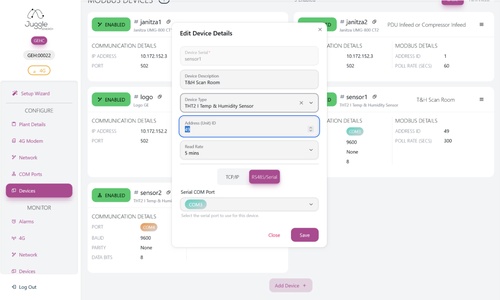

Here locate the device or sensor you want to configure from the list. On the right on the device there is an options menu icon (shown by the three lines) and from the drop down menu click edit which will then open the device setting pop up. Locate the address ID and change this to 49, once this is done press save. If you have multiple devices and/ or sensors connected you will need to repeat this for each one, unless you have a specific setup that requires a different address.

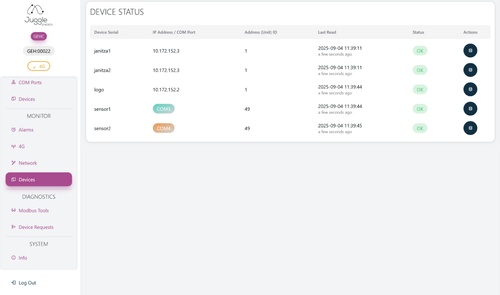

Once all of the devices have been updated and saved navigate to the tab on the side labelled “monitor” and follow the drop down to “devices”. This will then bring up a live list of all devices and sensors being read (this may need a moment for it to be read).

If you are having issues configuring a JBox please reach out to support.
